Cold Storage Panels from Shanghai Heleng Refrigeration deliver industry-leading thermal insulation. They ensure structural durability and energy efficiency for temperature-controlled facilities. As an established manufacturer, we leverage the industrial resources of Luohe Tian Shun Cold Chain Group. We produce high-performance panels that protect cold chain assets worldwide. Our specialized products utilize proprietary ThermoCore™ high-density insulation. They also feature the advanced Tian Shun Double-Tongue Joinery system to minimize thermal bridging.
Rather than simply supplying components, HELENG provides a comprehensive approach to cold room design and assembly. Our intelligent manufacturing base uses high-precision continuous production lines. This guarantees absolute uniformity in density and structural performance. These advanced fabrication capabilities ensure every insulated panel meets strict international standards. Consequently, our clients significantly reduce operational energy costs while maintaining tight temperature tolerances.
Our solutions optimize energy consumption by maximizing thermal R-values to protect against temperature fluctuations. Exceptional airtightness prevents vapor ingress, satisfying strict hygienic requirements. We offer standardized material options that meet FDA, USDA, and GMP compliance for cleanroom installations.
Choosing the correct core insulation material is essential for balancing thermal performance, budget constraints, and fire-safety requirements. At HELENG, we specialize in manufacturing both Polyurethane (PUR) and Polyisocyanurate (PIR) core formulations inside our sandwich panels. Both options utilize our ThermoCore™ high-pressure foaming technology to eliminate voids. This guarantees a uniform cellular structure across the entire panel length.

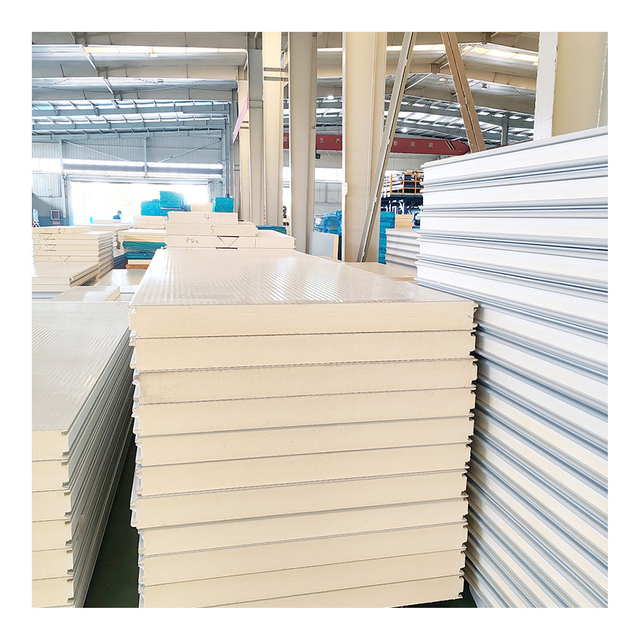

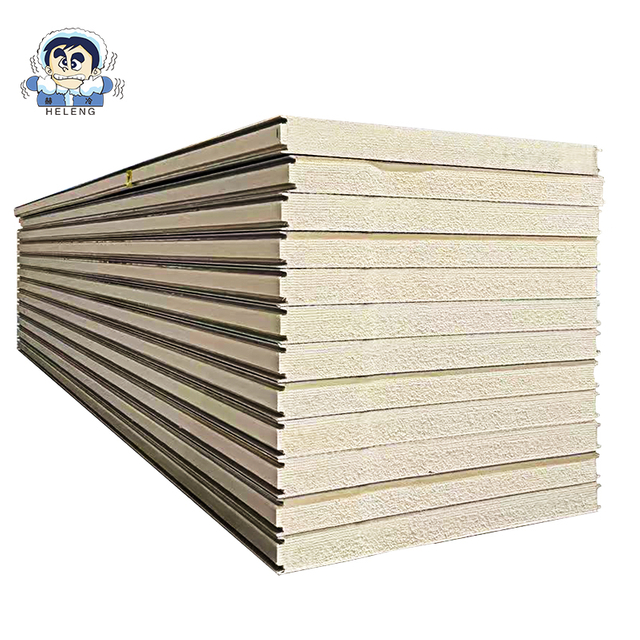

While PUR provides exceptional thermal efficiency, it remains highly cost-effective for standard storage configurations. Conversely, PIR offers an advanced hybrid formulation designed for maximum safety. These PIR panels exhibit superior self-extinguishing and flame-retardant properties. They achieve an impressive B1 fire-resistance rating that complies with rigorous industrial building codes. The table below details the technical differences to guide your selection process:
| Technical Parameter | PUR Cold Storage Panels | PIR Cold Storage Panels |
|---|---|---|
| Core Density | 40 - 42 kg/m³ | 42 - 45 kg/m³ |
| Thermal Conductivity | ≤ 0.022 W/(m·K) | ≤ 0.019 W/(m·K) |
| Operating Temperature Range | -50°C to +80°C | -150°C to +120°C |
| Fire Safety Rating | B2 Grade (Flame Retardant) | B1 Grade (Self-Extinguishing) |
| Best Suited Applications | Standard walk-in coolers, medium-temp cold rooms | Large-scale logistics, food processing, biopharma |
An insulated envelope is only as strong as its joints. To address different project scales and mechanical demands, HELENG designs two primary connection mechanisms. These secure our insulated panels and eliminate thermal bridging. Our structural joint options guarantee a completely sealed, airtight barrier. This prevents moisture infiltration and ice formation within the joints.

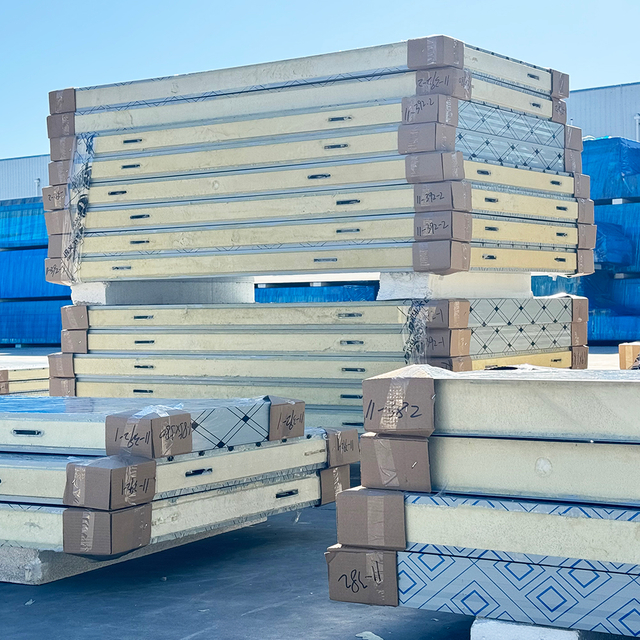

For modular walk-in coolers, specialized laboratories, and medium cold storage facilities, our cam-lock polyurethane panels offer a highly convenient joint option. These panels feature integrated eccentric locking fasteners embedded within the high-density foam during manufacturing. This allows onsite installers to tightly pull panels together with a simple hex key. The result is a perfectly flush, airtight connection. Cam-lock systems are ideal for projects requiring fast assembly, future expansions, or complete relocation.

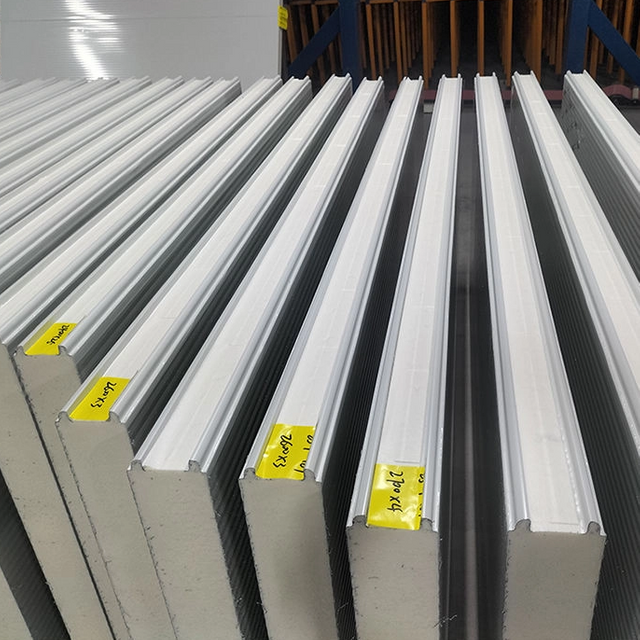

For high-ceiling logistics warehouses, large-scale food processing facilities, and distribution hubs, continuous joint panels are the preferred standard. They utilize our proprietary Tian Shun Double-Tongue Joinery. This advanced profile creates a labyrinth seal at each joint, completely blocking vapor transmission and cold air escape. Installed without internal locks, these continuous panels support extended runs. They are structurally robust enough for heavy wind loads and high-rack integrations.
Selecting the correct cold room panel thickness is a critical engineering decision. It directly impacts operational power consumption, compressor sizing, and long-term equipment lifespan. Inadequate thickness leads to continuous heat gain, forcing refrigeration units to run longer. This increases energy bills and accelerates wear. Proper mapping ensures optimal insulation resistance (R-value) is maintained. This avoids surface condensation, joint icing, and structural degradation.
To assist project managers, structural designers, and refrigeration engineers, we provide a technical mapping table. It demonstrates how thickness levels correspond to target operating temperatures and estimated R-values using our advanced ThermoCore™ insulation foam.
| Application Type | Target Operating Temperature | Recommended Thickness | Core Material | Estimated R-Value (m²·K/W) |
|---|---|---|---|---|
| Processing Areas & Anterooms | +10°C to +15°C | 50mm / 75mm | PUR / PIR | 2.27 - 3.41 |
| Chilled Storage & Fresh Rooms (Most Common) | 0°C to +5°C | 100mm | PUR / PIR | 4.54 |
| Low-Temperature Walk-In Freezers | -18°C to -25°C | 120mm / 150mm | PUR / PIR | 5.45 - 6.81 |
| Deep Freeze & Blast Freezing | -35°C to -40°C | 200mm | PIR | 9.09 |
The external metal skin of an insulated panel must withstand demanding environmental conditions. These include high humidity, low-temperature cycles, and intense sanitization protocols. HELENG offers a variety of premium metal facings and specialized coatings. Sourced from top-tier suppliers like Baosteel, these materials match your facility's operational demands and regulatory compliance standards.
Our SUS304 Stainless Steel Panels are specifically designed for high-corrosion, wet, and saline environments. These include seafood processing plants, slaughterhouses, and chemical storage facilities. SUS304 offers unrivaled resistance to acidic food oils and harsh chemical sanitizers. Alternatively, we utilize high-durability pre-painted galvanized iron for our PPGI Color Steel Plates. These facings provide excellent scratch resistance, color retention, and structural strength. They remain the standard choice for major logistics hubs and supermarkets.
Furthermore, all HELENG surface coatings comply with strict FDA, USDA, and GMP hygienic cleanroom requirements. They ensure our panels do not promote bacterial growth, release toxic off-gassing, or degrade under frequent washdown procedures.
Unlike generic manufacturers that only ship bulk products, Shanghai Heleng Refrigeration provides a fully integrated, turnkey solution. Backed by the immense industrial supply chain resources of Luohe Tian Shun Cold Chain Group, we support clients through every phase. We handle cold storage development from initial concept to final mechanical validation.
Our comprehensive workflow features five distinct integration phases. First, we provide custom planning and budgeting by evaluating your operational workflow, temperature demands, and space constraints. Next, we deliver structural and layout designs, selecting the correct combination of panel densities, joinery systems, and structural framing. We then utilize advanced automated continuous production lines for intelligent manufacturing. Our team executes professional on-site installation, integrating panels with high-efficiency refrigeration machinery. Finally, we conduct rigorous pressure testing, temperature validation, and ongoing maintenance support.
If you are planning a new facility or upgrading an existing commercial setup, reach out today. You can contact our technical sales team for expert guidance. Partner with a leading Cold Storage Panels manufacturer to design a custom solution tailored to your exact operational requirements.
Our highly adaptable panels serve diverse industries worldwide. Maintaining tight temperature tolerances is critical to product quality, safety, and continuous business operations.
Built to handle heavy moisture and routine washdowns, our panels prevent mold and microbial growth in food processing and slaughterhouses. This ensures a sanitary processing environment. For cold chain logistics and warehousing, our high-density core formulations and robust joint configurations support large-scale high-rack structures. They help massive distribution centers maintain structural integrity while limiting thermal leakage. In biopharmaceuticals and laboratories, extreme temperature stability down to -40°C or lower is essential. Our cleanroom-compliant panels ensure sensitive medical supplies and chemical compounds remain stored under perfect constant-temperature conditions.
What is the difference between PIR and PUR insulation cores in cold storage panels?
PUR (Polyurethane) provides excellent thermal efficiency and is highly cost-effective for standard cold rooms. PIR (Polyisocyanurate) is an advanced hybrid formulation that offers superior fire resistance (class B1). It also delivers up to 10% higher thermal performance, making it our preferred choice for large-scale logistics and highly regulated environments.
How do I choose the right thickness for my cold storage panels?
Panel thickness depends on your required internal operating temperature. We generally recommend using 100mm panels for medium-temperature chilled storage (0°C to 10°C). For standard freezers (-18°C to -25°C), 150mm panels are ideal. For deep-freeze or blast freezing applications (-30°C to -40°C), we utilize robust 200mm panels to prevent thermal bridging.
Are HELENG cold storage panels compliant with food safety regulations?
Yes, our panels are engineered to meet strict FDA, USDA, and GMP cleanroom standards. For food processing and pharmaceutical facilities, we offer specialized SUS304 stainless steel and antimicrobial-coated PPGI panels. These premium materials easily withstand heavy sanitization and actively prevent bacterial growth.
Can HELENG design and install the panels, or do you only manufacture them?
Through Shanghai Heleng and our parent company, Luohe Tian Shun Cold Chain Group, we provide complete turnkey engineering. We handle everything from custom layout planning and manufacturing to complete refrigeration system integration and on-site construction.
